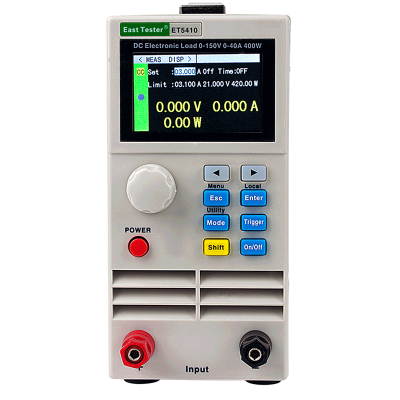

Programmable Benchtop DC Electronic Load
R3,500.00
DC programmable electronic load provides 1mV/10mV, 1mA/10mA high resolution, and precision with superior performance. It is equipped with 12 common modes and complete test functions, which can be widely used in a charger, switching power supply, linear power supply, battery, and other production line testing.
Product Features
User-friendly Design:
- It adopts 3.5-inch TFT LCD screen with rich display contents and supports Chinese and English displays.
- The operation process is simple and convenient, and with a visual interface display system, it is easy to get started.
- Key lock function to prevent accidental operation
High-performance load:
- It provides CC, CV, CR, CP, and CC+CV, CR+CV several basic measurement modes.
- It provides a professional BATTERY test with amp/hour logging.
- It provides a professional LED test.
- The Tran(sient) test mode can test the dynamic output performance of the power supply.
- The scan test mode can test the continuity of power output within a certain range.
- Support 4-wire measurement.
- The list test mode can simulate a variety of loading status changes.
- The short circuit test can be used to simulate the load short circuit.
- Support external trigger input.
- Built-in buzzer alarm.
- Maintain data storage in case of power failure.
- Remote operation via USB, RS-232 or 485 (optional) interfaces.
Multiple Safety Protection
- It provides overcurrent, overvoltage, overpower, over-temperature protection.
- The overvoltage and overcurrent parameters can be set flexibly, to effectively protect the load.
- It has an intelligent fan speed control function, which can effectively reduce the fan noise when it is working
With input polarity reverse warning
Available on backorder
